Hydraulic Tunnelling Drilling Rig

KJ310 Hydraulic Tunnelling Drilling Rig

Dimensions (L*W*H mm)

10250×1800×2000/2730

Weight（kg）

13500

Φ Aperture(mm)

32-76/42-102

Power（Kw）

13/20/18/21/22

Gas Production(m3/min )

0.3

Gradability(°）

sales hotline

Get a quote

product details

Technical Parameters

KJ310 Hydraulic Tunnelling Drilling Rig

Mining praparations and tunnelling; Drill vertical,inclined and horizontal blast hole; Suitable foe rhe hard-rock of any section in the range of 12-35m².

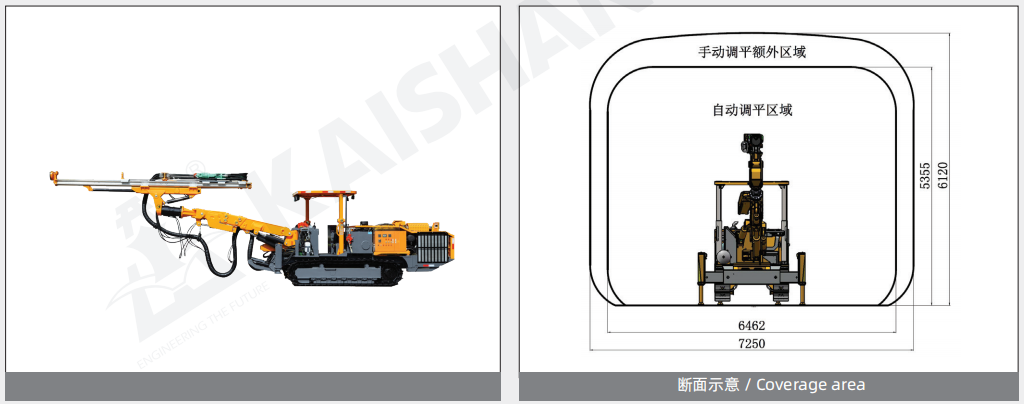

The firm flexible boom is capable of optical coverage of the section;
360º rotation and self-leveling beam make drill positioning easy;
The boom can also be used for the drilling of lateral cross-cut and rock bolting;
The drill rig provides a good view for the operator;
Balanced layout and the articulated chassis of four-wheel drive ensure the flexible,fastand safe driving in the narrow tunnel;
Considerable space and automatic functuons enable the driver to concentrate on drilling in a safe,fast and accurate manner;
All the relevant parts are kept in good protection,meanwhile easy to maintain.

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
