Split Surface Drilling rig

KD70S Photovoltaic Drilling Rig

Dimensions (L*W*H mm)

6250×2260×2600

Weight（kg）

5500

Φ Aperture(mm)

115-203

Gradability(°)

sales hotline

Get a quote

product details

Technical Parameters

KD70S Photovoltaic Drilling Rig

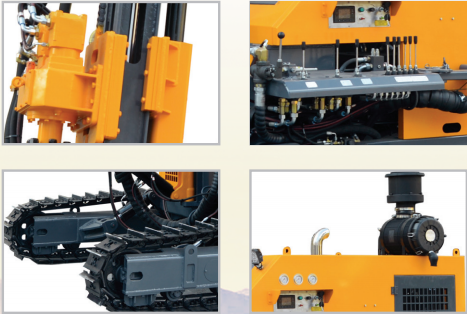

Equipped with Yuchai four-cylinder engine, which is suitable for drilling blasting holes in construction sites such as photovoltaic pile foundation,hydropower project,open-pit mining and road construction with large aperture;
Equipped with integrated controller,real-time monitoring of drilling rigs operating parameters;
The walking chassis adopts the folding track frame and the engineering four-wheel belt,which has the function of track leveling;
Equipped with the enhanced plunger walking motor to improve the working pressure and increase its climbing performance;
The propulsive beam is propelled by oil cylinder and 20A roller chain;
The upper,middle and lower parts are equipped with high wear-resistant nylon anti-wear press plate to ensure the service life and improve the reliability of drilling operation;
The double motor gyrator with large reduction ratio precides rotary torque of up to 3500Nm for the drill rigs;
The hydraulic sysytem is upgraded and the cast iron gear pump with high strength and large displacement is adopted to ensure product quality;
The cover shell adopts the thickened profile and the lifting ring is added to facilitate loading and unloading and hoisting;
The drilling rigs has the advantages of long service life and stable product performance.

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
