Hydraulic Scaling Rig

KQ311 Hydraulic Scaling Rig

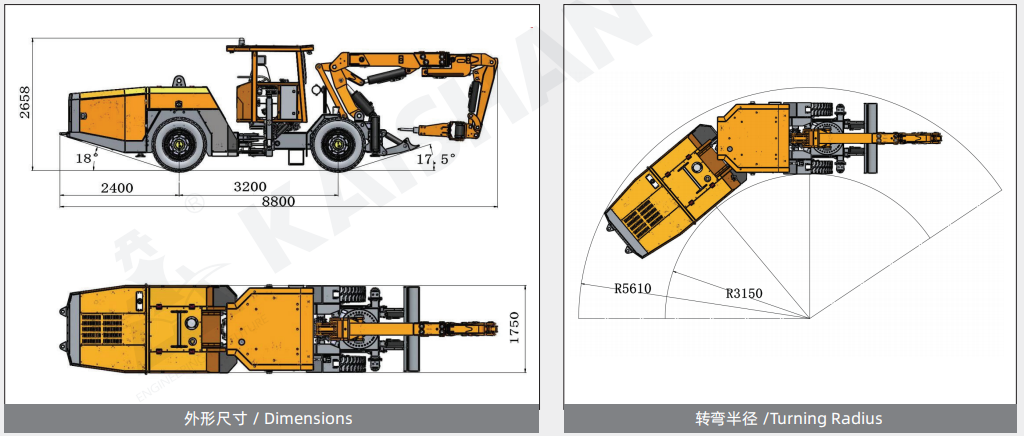

Dimensions (L*W*H mm)

8800×1750×2650

Weight（kg）

12000

Drill arm expansion and contraction(mm)

1200

Max working height(mm)

8300

Max working width(mm)

8800

Gradability(°）

sales hotline

Get a quote

product details

Technical Parameters

KQ311 Hydraulic Scaling Rig

Driven by diesel engine; Suitable for scaling operations in tunnels and non coal mine hill and various underground projects.

The folding arm is fitted with the hydraulic hammer and translation mechanism driven by the rotating oil cylinder and it is capable of all-round operations of working surface, top plate, side wall and base plate.
Proportion pilot control is applied to the hydraulic system, characterized by flexible manipulation and smooth operations.
The equipment can considerably improve the scaling efficiency and safety based on compact structure, excellent mobility, small turning radius and powerful climbing capacity.

Technical Parameters

* Note: Due to continuous technological updates and advancements, any differences between technical parameters and configurations and the actual product shall be based on the actual product delivered; Additionally, the machine shown in the picture may include additional equipment.
